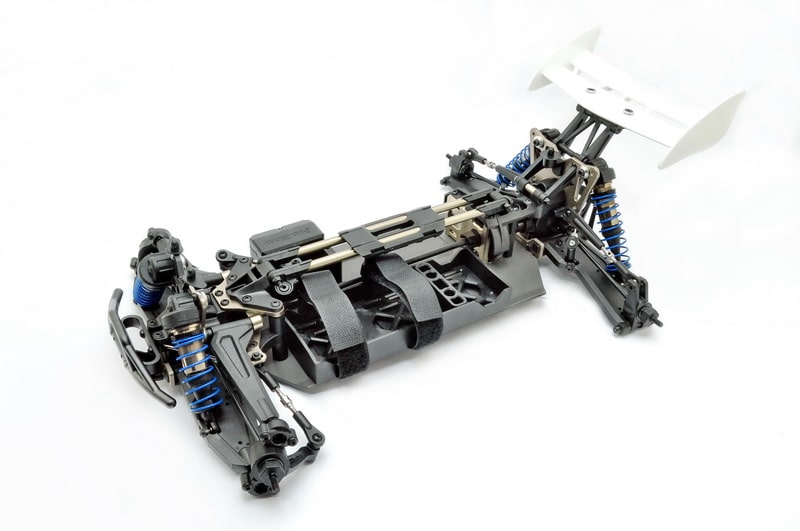

[FEATURES]
All Metal Parts CNC Machined.
Chassis: Lightweight, Hard anodized CNC aluminum, 3mm thick.

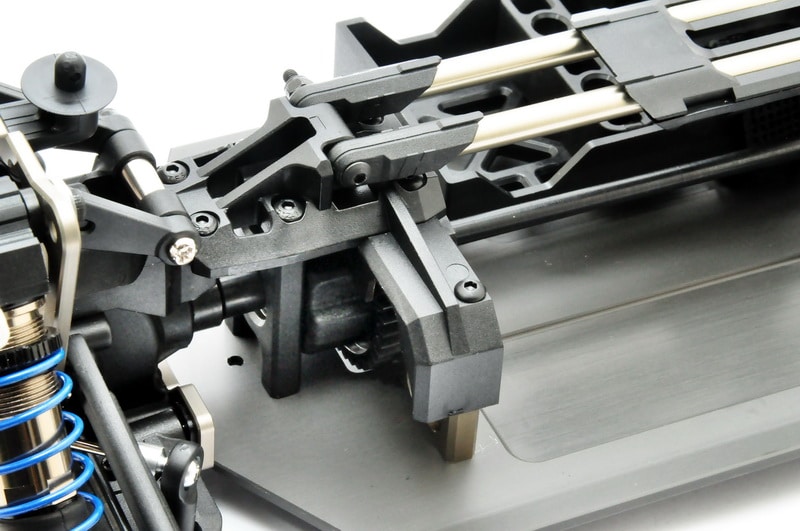

Center Top Brace
- Wire pass through.
Drive:
- Central: Single Ø4mm Hardened steel center driveshaft.
- Optional Alum driveshaft #OP1-0072.
- Front: CVA axles, Ø3.2mm Hardened steel.
- Rear: Dogbone axles, Ø3.2mm Hardened steel (Optional CVA #11382)

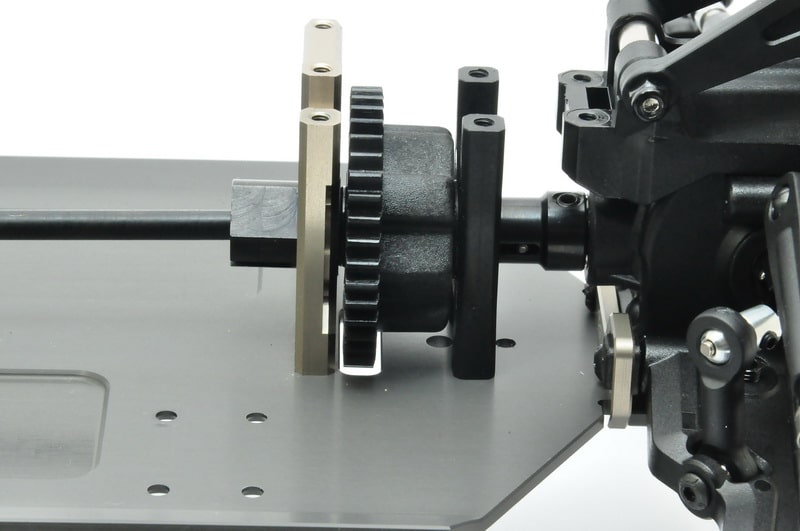

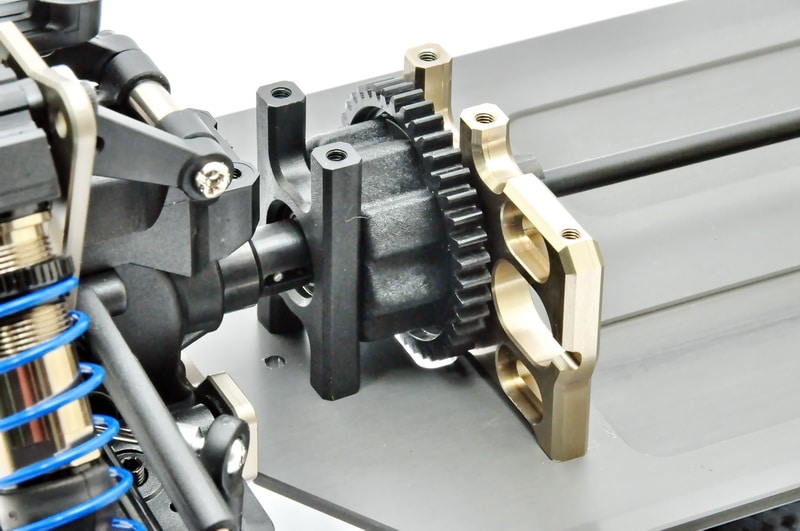

Differentials:
- Center diff is directly connected to rear diff.
- Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing
- Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1)
- Center Spur Gear: 40T (MOD 1)
- Front differential filled with #5K silicone oil.
- Center differential filled with #5K silicone oil.
- Rear differential filled with #3K silicone oil.

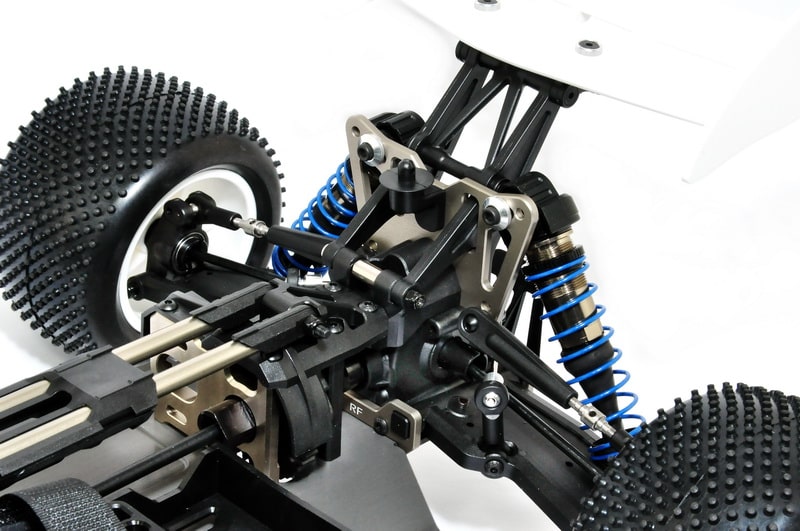

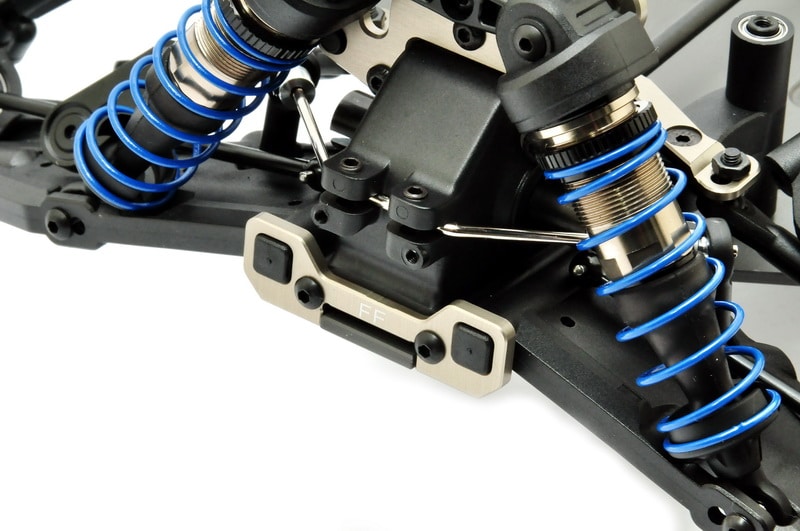

Shocks:
- Filled with #600 silicone oil.
- Alum 12mm Big Body, 3.5mm Shaft, Alum Adjustable Ring, Shock Cap Protector.
- Spring:
-. Front: 0.86kg/cm, L=50mm, Blue
-. Rear: 064kg/cm, L=65mm, Blue
-. Optional Front Spring #OP1-0073: 1kg/cm, L=50mm, Grey
-. Optional Rear Spring #OP1-0074: 0.73kg/cm, L=65mm, Grey
-. Shock Tower: 3mm CNC alum
-. Optional carbon fiber shock tower, Front tower #OP1-0070 & Rear tower #OP1-0071
Suspension:
- Front PBS
- Optional alum steering block set #OP1-0077; Alum rear hub #OP1-0079
- New strengthened composite upper arms and lower arms.( Also Fitting for older versions of the TT10)
- Optional carbon fiber arm insert #OP1-0068 and #OP1-0069
- Front & rear anti-roll bars.
- Front and rear CNC alum arm holder with pill inserts #11367, adjustable toe angles and anti-squat angles

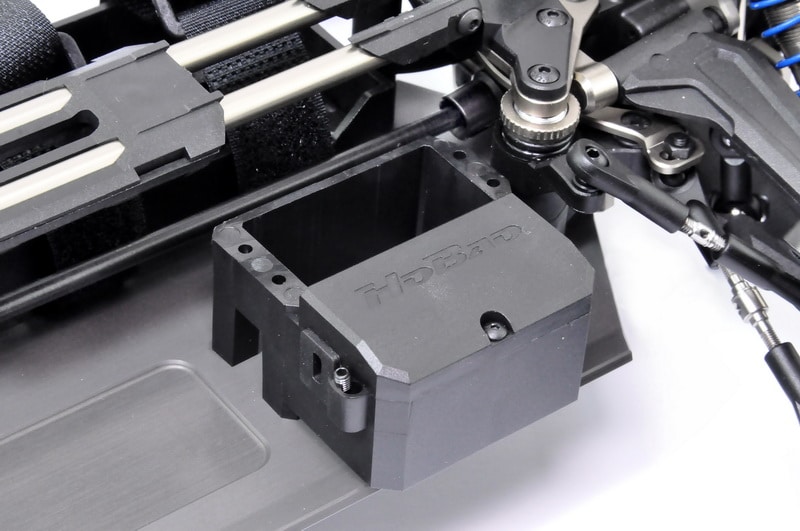

Steering:
- New Steering Crank set with CNC alum rack and hard spring.
- Ball bearing equipped with servo saver
Battery tray:
Motor Gear: 13T (MOD 1)
Spur Gear: 40T (MOD 1)
Motor Mount:
- CNC alum laydown motor mount
- Fitting for motors with size below 38mm
- Spur gear cover
Tires: Pin-spoke tires
Wheel Hex Hub:
- Front 12mm wheel hex hubs , Plastic
- Rear 12mm wheel hex hubs, +1mm , Plastic
- Optional Front wheel hex hubs #OP1-0075; Rear wheel hex hubs #OP1-0076
Wheels:
- 5-Spoke wheels, white, 12mm Hex
- Optional yellow wheels #11106Y/ Pre-Mounted Tires on yellow Wheels #11105Y
Ball Bearings: Full set included
Body: Clear Body
Caster: Adjustable.
Camber: Adjustable.
[SPECIFICATIONS]
[REQUIREMENTS]
- Radio 2 channel
- ESC & Motor
- High-torque steering servo
- Glue for tire
- Paint for body
- LiPo batteries with single Dean plug connector
- Battery Charger
- AA Batteries for Transmitter (4)
